Capacitor, Resistor, Coil, Transformer, and Other Inductor Manufacturing

NAICS 334416 · Computer and Electronic Product Manufacturing6 · SBA size standard: 550 employees

Manufacturers produce electronic components such as capacitors, resistors, coils, transformers and inductors in short runs or to customer specifications. For a shop that receives custom electrical specs, winds coils, assembles parts and ships finished units, the specialists turn purchase orders into production jobs, raw material needs into procurement lists, winding and assembly steps into scheduled work orders, test data into quality records and shipments into invoices and reorders. Winding tolerances, dielectric specs, safety certifications and lot traceability stay with the technician and engineer.

Start with these bots

What makes this business different

  • Custom electrical specifications including capacitance, resistance, inductance, voltage rating, tolerance and temperature coefficient that must be followed exactly
  • Low-volume or prototype runs mixed with repeat production orders, each requiring its own job traveler
  • Coil winding, varnishing, lead forming, soldering or encapsulation steps that depend on precise machine settings and operator skill
  • Raw materials such as magnet wire, core laminations, ceramic slugs, foil and dielectric film purchased in reels or batches with lot traceability
  • In-process and final electrical testing with documented results for each serial or lot number
  • Compliance paperwork including RoHS, REACH, conflict minerals and customer-specific quality clauses
  • Inventory of finished goods, work-in-process and returned cores with strict FIFO and shelf-life rules for adhesives and epoxies
  • Equipment calibration records, preventive maintenance logs and traceability to raw material lots for audits

Specialist bots

  • a technician at a workbench examining a technical drawing and an electrical schematic pinned to a corkboard next to a coil winding machine

    Order and Specification Reviewer

    Convert incoming purchase orders and drawings into confirmed production jobs with accurate electrical specifications.

    Works in: Ambitious Docs, Ambitious Tasks, Contract Analyzer · Workflows: Customer order and specification review

    Automates

    • Extracts capacitance, resistance, inductance, voltage and tolerance values
    • Compares requirements to standard product matrix
    • Drafts specification confirmation letters
    • Builds initial job traveler templates
    • Flags missing or ambiguous requirements

    Stops for a person

    • The engineer reviews and approves any non-standard specifications
    • A person sends the final order confirmation and handles exceptions
  • a technician measuring magnet wire diameter with calipers beside spools of copper wire and stacks of ferrite cores on metal shelving

    Materials and Inventory Planner

    Calculate exact material needs from bills of materials and maintain traceable stock of wire, cores and encapsulants.

    Works in: Ambitious Sheets, Ambitious Tasks, Ambitious Docs · Workflows: Material requirements and procurement

    Automates

    • Explodes bills of materials into raw part quantities
    • Subtracts current inventory and on-order amounts
    • Generates purchase requisitions sorted by supplier
    • Assigns and tracks material lot numbers
    • Monitors shelf-life dates for adhesives and varnishes

    Stops for a person

    • The owner approves and places all purchases
    • Receiving personnel verify physical material against the list

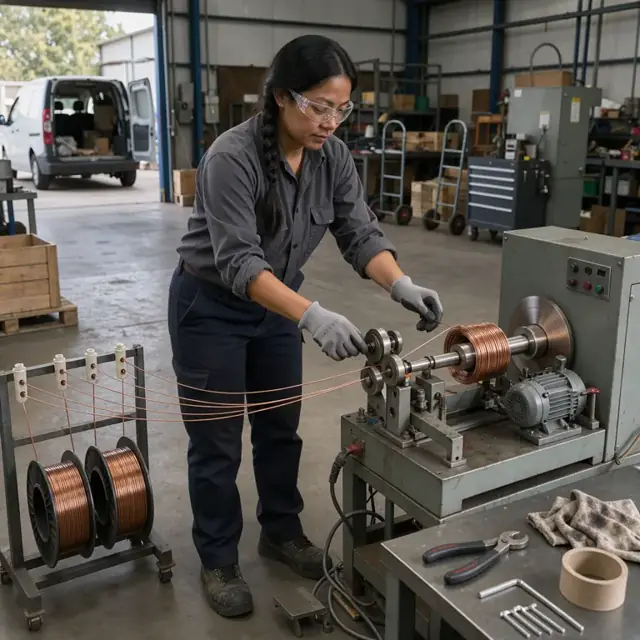

  • a technician adjusting tension on a coil winding machine with multiple spools of wire feeding into a rotating mandrel

    Production Scheduler

    Sequence winding, assembly and test operations across machines and technicians to meet delivery dates.

    Works in: Ambitious Tasks, Ambitious Sheets · Workflows: Winding and assembly scheduling

    Automates

    • Sequences jobs by due date and setup family
    • Assigns machines and parameters for each winding run
    • Creates daily work orders with process settings
    • Reserves test equipment time
    • Highlights capacity conflicts

    Stops for a person

    • The shop supervisor adjusts the schedule for technician availability
    • The engineer approves machine settings for new designs
  • a technician connecting a finished toroidal inductor to an LCR meter on a test bench surrounded by oscilloscopes and probes

    Test Data Coordinator

    Generate test procedures, record results and compile lot histories from electrical measurements.

    Works in: Ambitious Tasks, Ambitious Sheets, Ambitious Docs · Workflows: In-process and final testing

    Automates

    • Creates test scripts for hipot, LCR and surge tests
    • Structures data entry forms for each checkpoint
    • Compares recorded values to specification limits
    • Builds lot history files with all measurements
    • Flags deviations for review

    Stops for a person

    • A qualified technician performs the actual tests and enters raw data
    • The engineer reviews and signs off on all out-of-tolerance reports
  • a technician placing finished transformers into anti-static bags inside a shipping carton on a packing table with label printer nearby

    Shipping and Documentation Coordinator

    Prepare packing lists, certificates of conformance, invoices and shipping documents for each completed order.

    Works in: Ambitious Docs, Ambitious Tasks, Ambitious Sheets · Workflows: Packaging, shipping and invoicing

    Automates

    • Generates lot-specific labels and packing lists
    • Compiles test data into certificates of conformance
    • Drafts commercial invoices
    • Creates carrier shipping labels
    • Closes jobs and suggests reorder quantities

    Stops for a person

    • A person performs final visual inspection and packaging
    • The owner approves all invoices and any deviations from standard terms

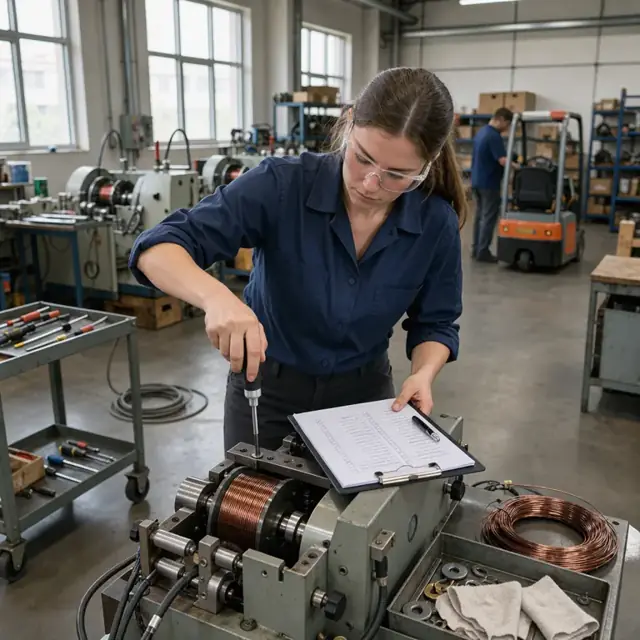

  • a technician using a torque screwdriver to adjust a coil winding machine head while referring to a maintenance checklist on a clipboard

    Equipment Maintenance Tracker

    Monitor calibration and preventive maintenance for winding machines, test equipment and soldering stations.

    Works in: Ambitious Tasks, Ambitious Sheets, Process Optimizer · Workflows: Equipment maintenance and calibration

    Automates

    • Tracks hours of use on each piece of equipment
    • Generates preventive maintenance checklists
    • Schedules calibration events
    • Maintains equipment history logs
    • Sends advance reminders before due dates

    Stops for a person

    • Technicians perform the actual maintenance and calibration
    • The owner reviews and files third-party calibration certificates

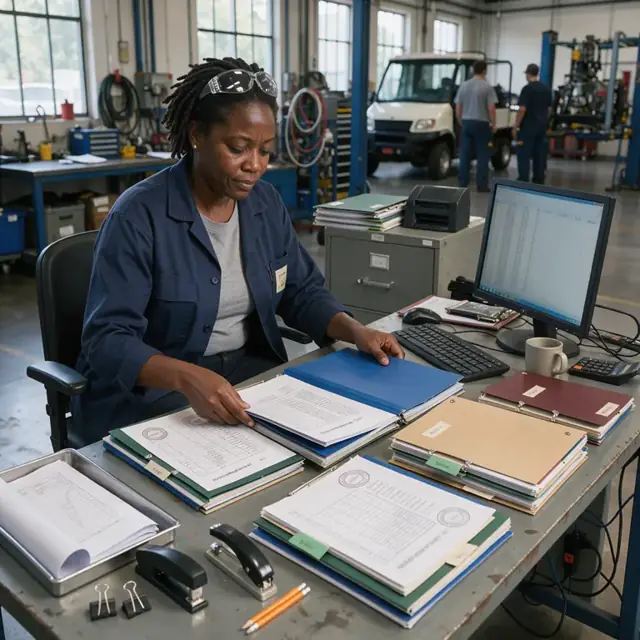

  • a technician organizing stacks of material certificates and test reports in labeled folders on a desk next to a computer monitor

    Compliance and Supplier Documentation Clerk

    Organize material certificates, regulatory declarations and customer-specific quality records.

    Works in: Ambitious Docs, Contract Analyzer, Ambitious Tasks · Workflows: Supplier and regulatory documentation

    Automates

    • Matches incoming material certificates to purchase orders
    • Tracks RoHS, REACH and conflict minerals status by part
    • Maintains the approved supplier list
    • Compiles compliance data packages
    • Alerts on expiring supplier certifications

    Stops for a person

    • The owner confirms which regulatory and customer requirements apply to each order
    • Engineering reviews and approves all supplier changes

Workflows

Customer order and specification review

Starts when: Receipt of a purchase order or request for quote

  1. Parse the electrical parameters, tolerance, quantity, packaging and delivery date
  2. Check against existing designs or capability matrix
  3. Draft a confirmation of specifications and any exceptions
  4. Create a job traveler template with required process steps
  5. Flag any required certifications or test plans

Watch for: Electrical values and tolerances must be captured exactly as written; Any deviation requires engineering approval before acceptance

Material requirements and procurement

Starts when: After order acceptance and weekly

  1. Explode the bill of materials for each job
  2. Subtract available inventory and open purchase orders
  3. Generate purchase requisitions by supplier for wire, cores, terminals and encapsulants
  4. Track lot numbers and certificates of conformance upon receipt
  5. Update inventory records for reels and cut lengths

Watch for: Magnet wire and dielectric films are purchased in minimum reel quantities; Shelf-life sensitive materials such as epoxy must be rotated

Winding and assembly scheduling

Starts when: Start of each production week

  1. Sequence jobs by due date, machine availability and setup similarity
  2. Assign winding machines, bobbin types and tension settings
  3. Create daily work orders with process parameters and quality checkpoints
  4. Reserve test equipment and environmental chambers
  5. Flag high-priority or prototype jobs for engineering support

Watch for: Winding machines must be set up for specific wire gauge and turns count; Changeover time between core sizes and wire types is significant

In-process and final testing

Starts when: Completion of each manufacturing step or batch

  1. Generate test scripts for hipot, inductance, resistance and surge testing
  2. Record measured values against specification limits for each unit or lot
  3. Flag out-of-tolerance parts for rework or scrap
  4. Compile test data into lot history records
  5. Prepare data packages for customer review when required

Watch for: Test equipment must be within calibration dates; Traceability to raw material lots is mandatory for many customers

Packaging, shipping and invoicing

Starts when: Completion of final inspection

  1. Generate packing lists and labels with lot and serial numbers
  2. Draft commercial invoice and certificate of conformance
  3. Create shipping labels and carrier notifications
  4. Close the job in inventory and trigger reorder suggestions
  5. Archive the complete job traveler and test records

Watch for: ESD-safe packaging and moisture barrier bags required for many components; Customer-specific labeling and documentation must be exact

Equipment maintenance and calibration

Starts when: Scheduled intervals or after use

  1. Track usage hours on winding machines, soldering stations and test equipment
  2. Generate preventive maintenance checklists
  3. Schedule third-party calibration for electrical test sets
  4. Log any repairs or adjustments
  5. Update maintenance records and notify before due dates

Watch for: Winding tensioners and mandrels require periodic verification; Calibration certificates must be kept for audits

Supplier and regulatory documentation

Starts when: On receipt of materials and on renewal dates

  1. Verify incoming certificates of conformance against requirements
  2. Track RoHS, REACH and conflict-minerals declarations by supplier
  3. Maintain approved supplier list and audit schedule
  4. Generate compliance reports for customer requests
  5. Alert on expiring certifications

Watch for: Many customers require full material traceability; The owner confirms which regulatory clauses apply to each order
